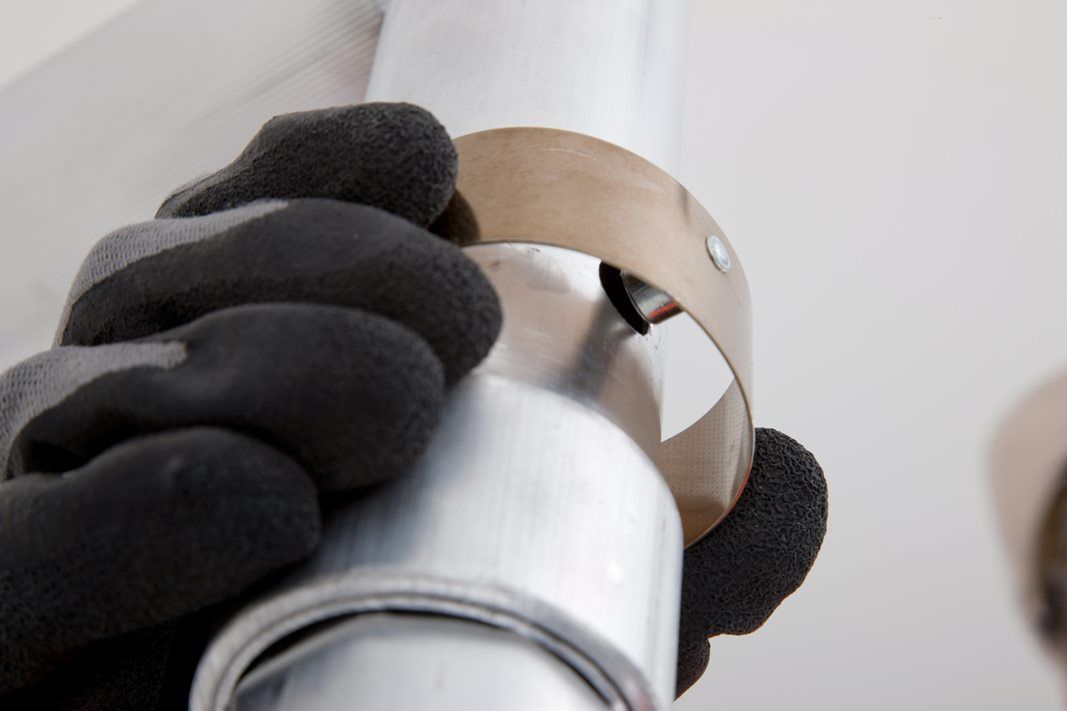

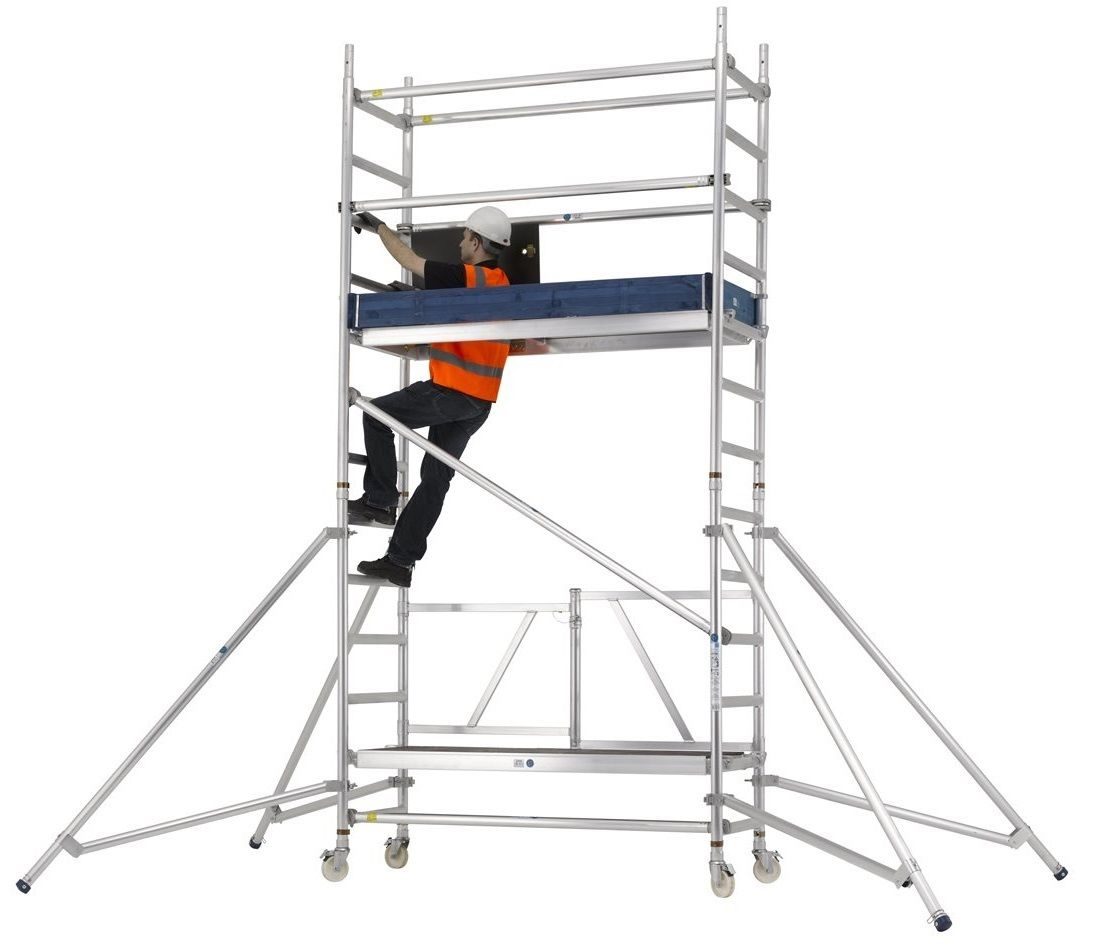

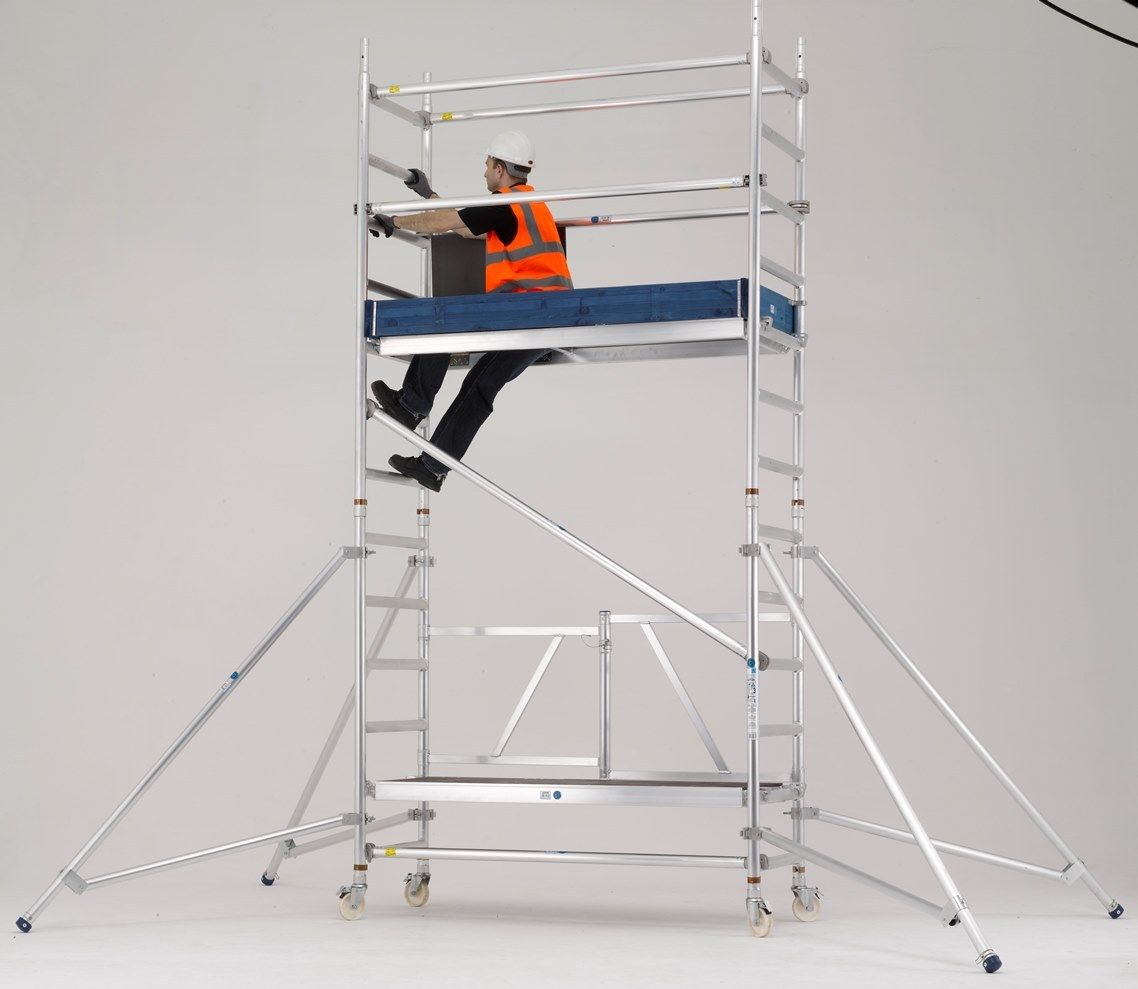

FAST & FREE – Reach heights quickly and safely: folding base unit with compact closed dimensions for transport; quickly erected using frames and braces that snap into place.
- Platform size, approx.: 1.80 m x 0.68 m
- Eight different working heights from 2.60 metres up to 8.5 metres

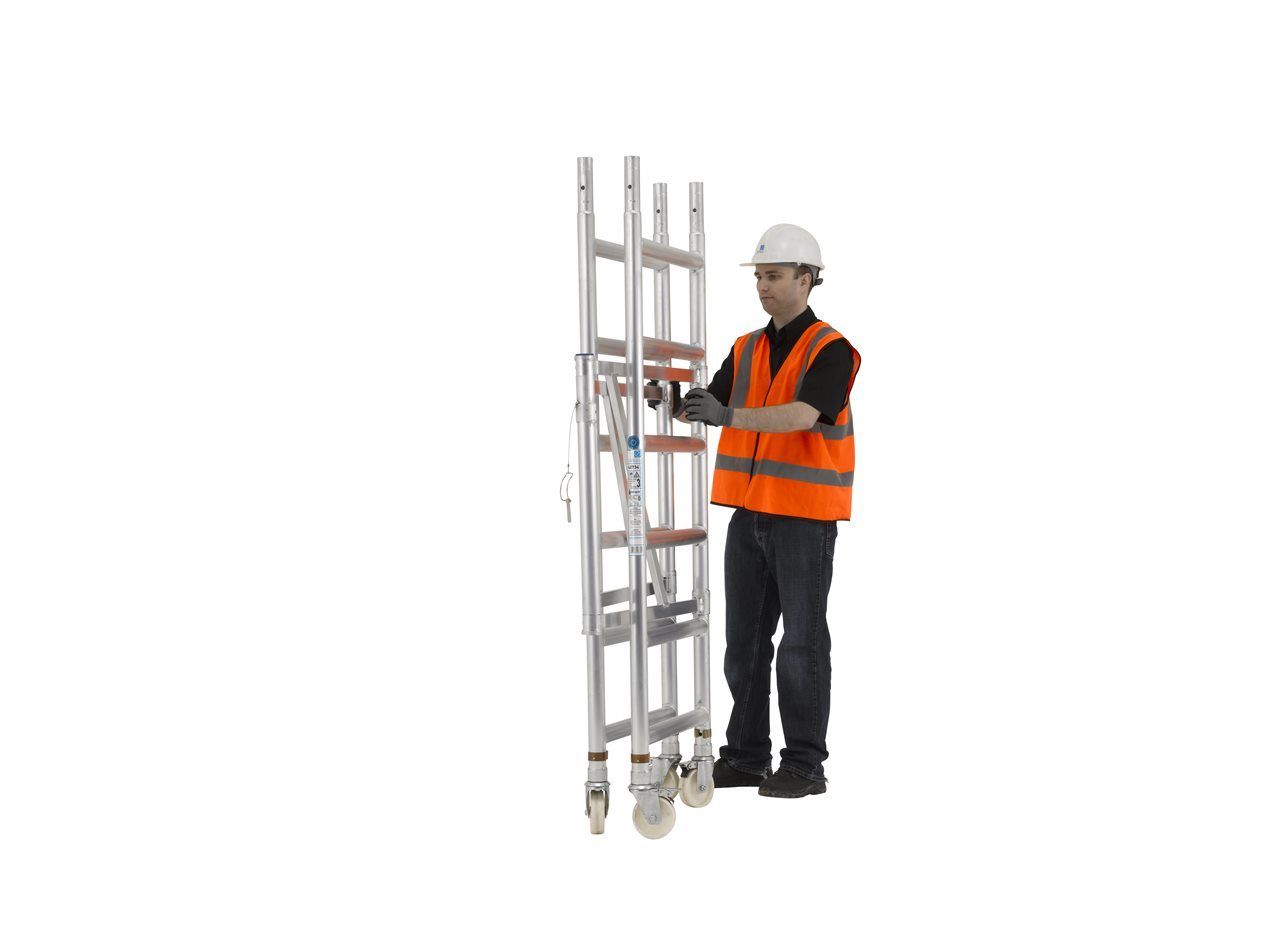

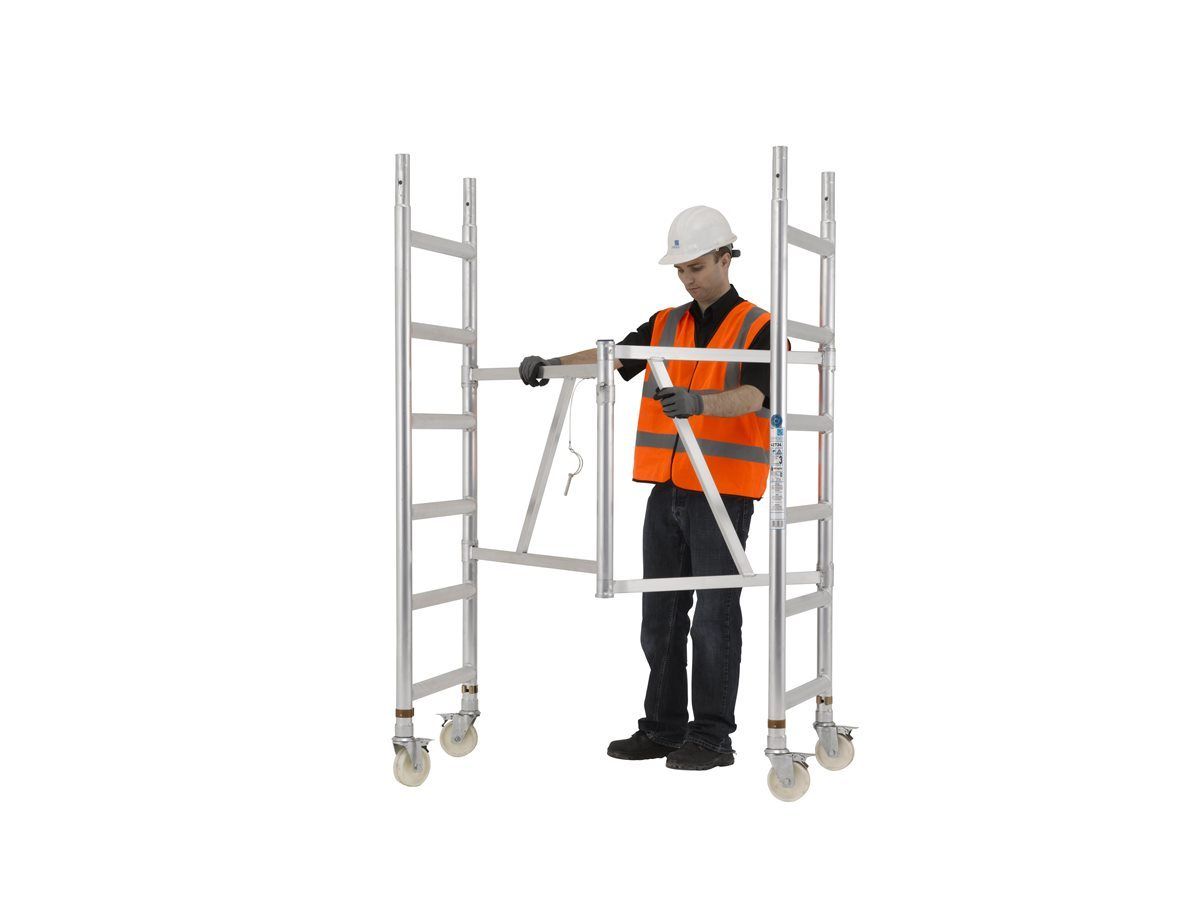

- Folding base frame is ideal for rapid erection and dismantling
- Minimum space required for transport and storage (folding frame only 1900 mm x 960 mm x 360 mm when closed)
- Mobile, will also go through doorways (model 5600101)
- Certified to EN 1004 Class 3.
- Safe working load: 210 kg

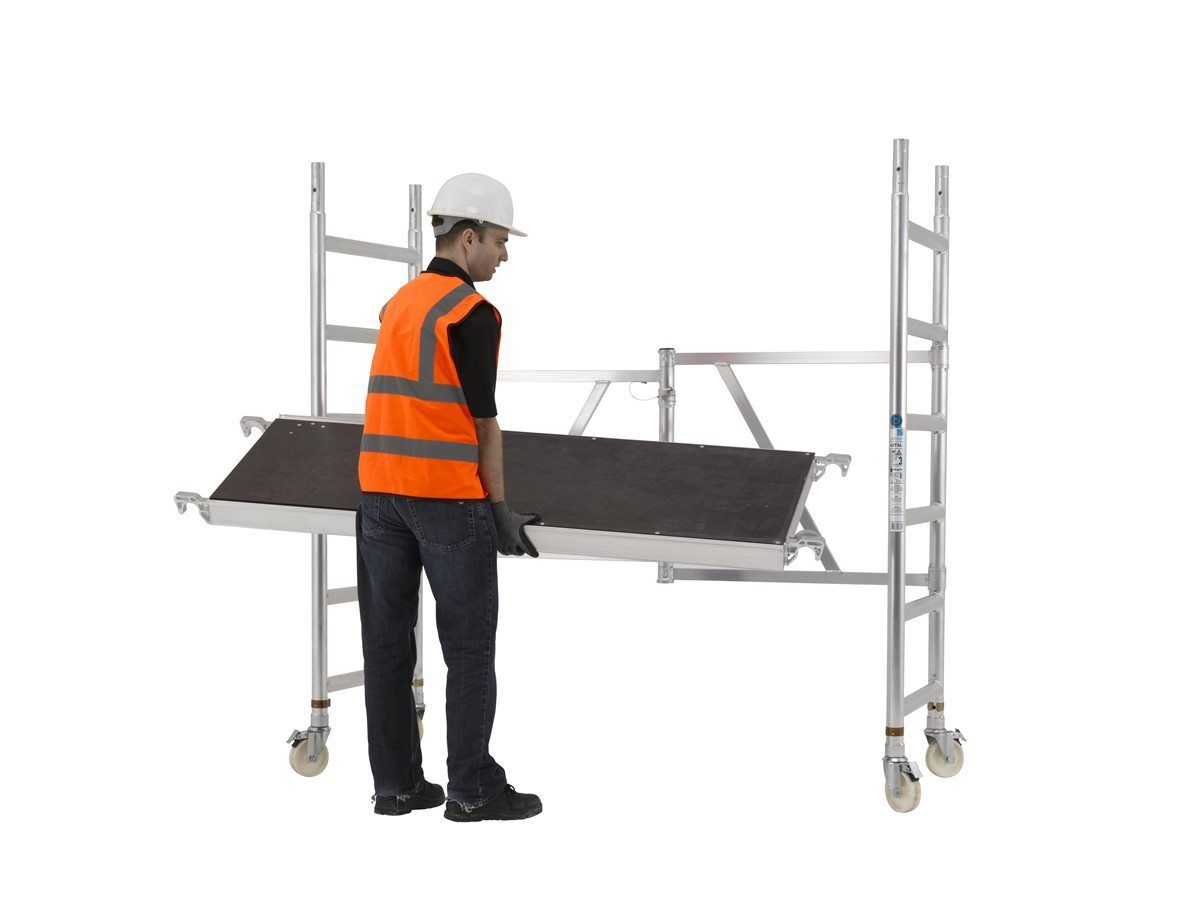

- Erected using 3T method (Through The Trapdoor)

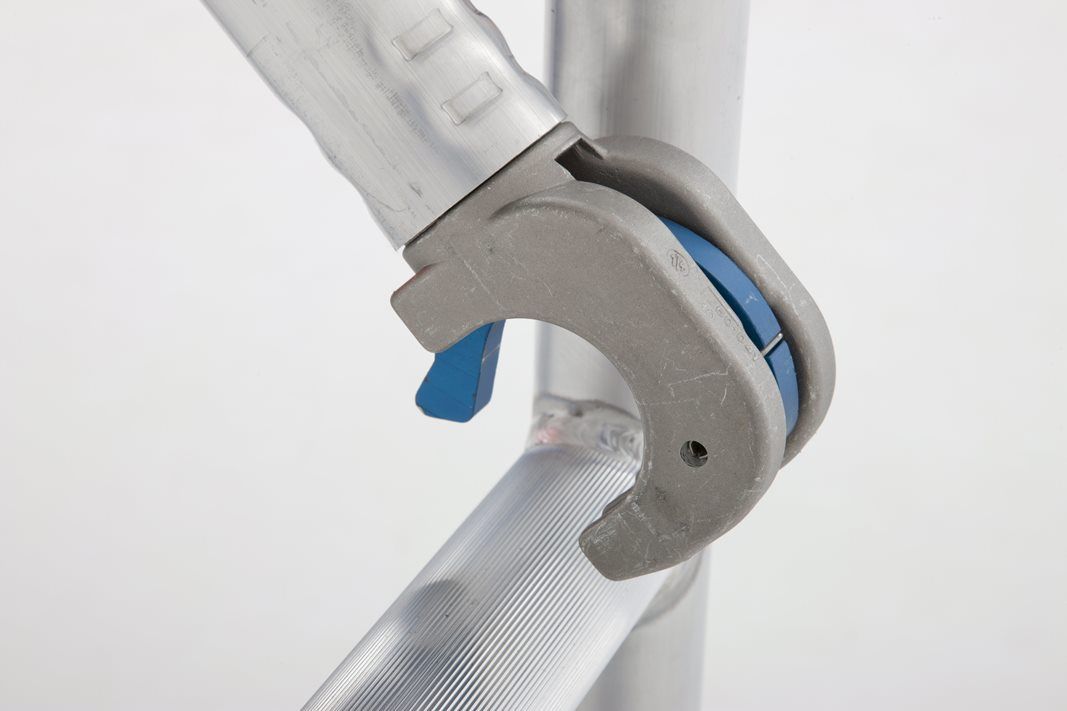

- Robust – Ø 50 mm frames and braces

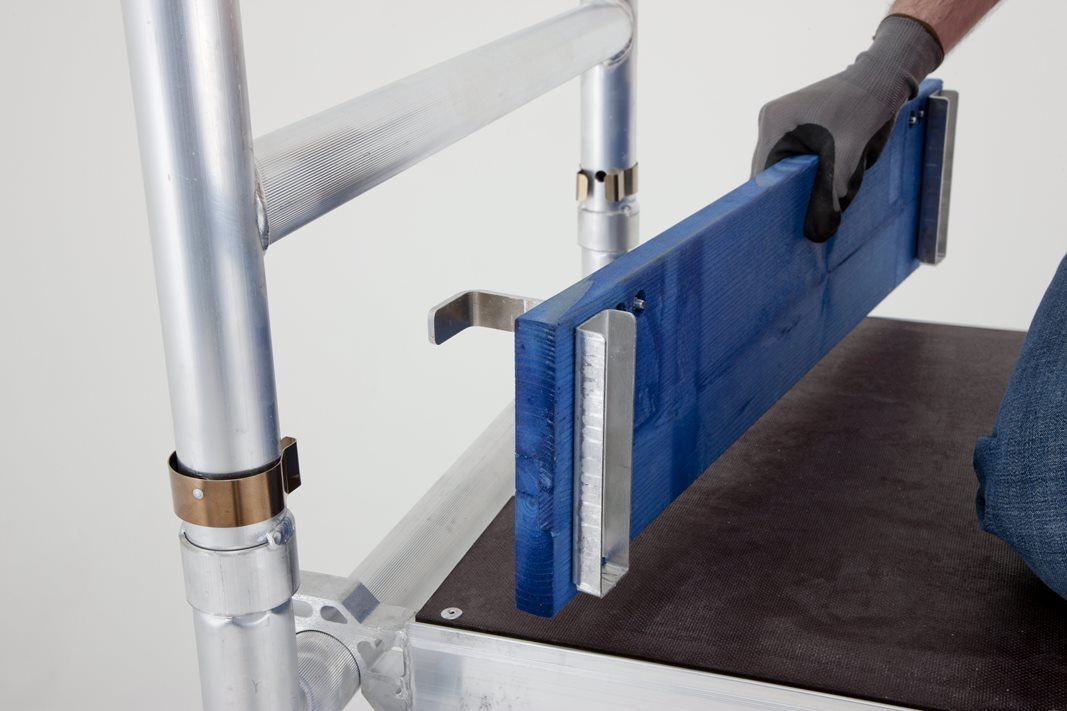

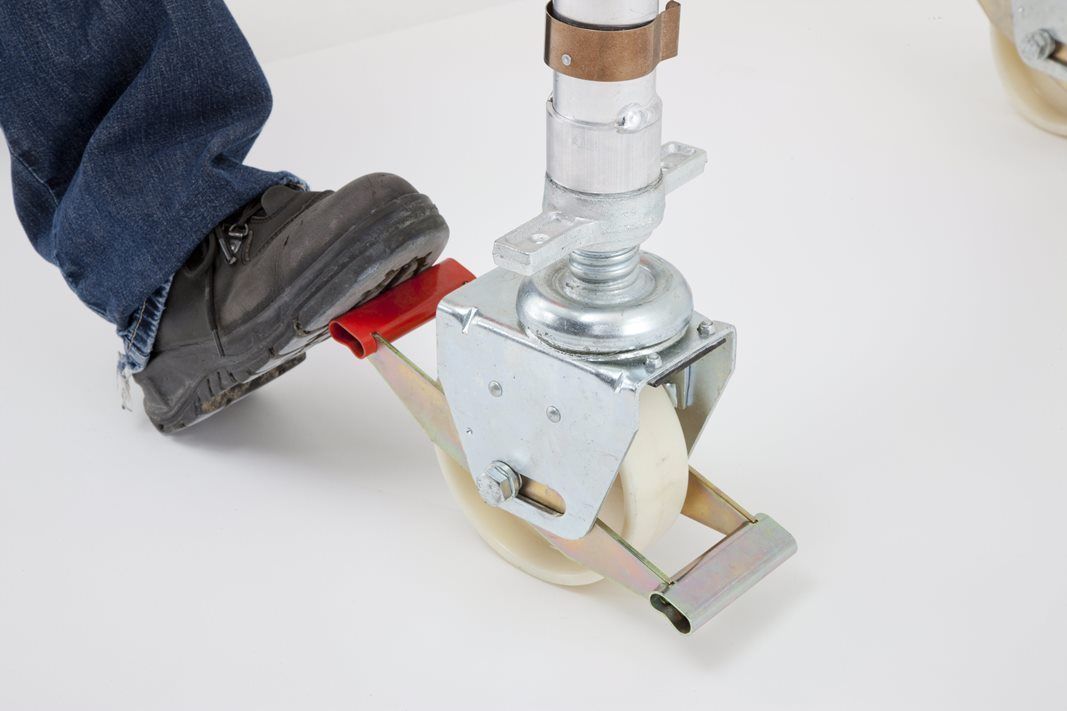

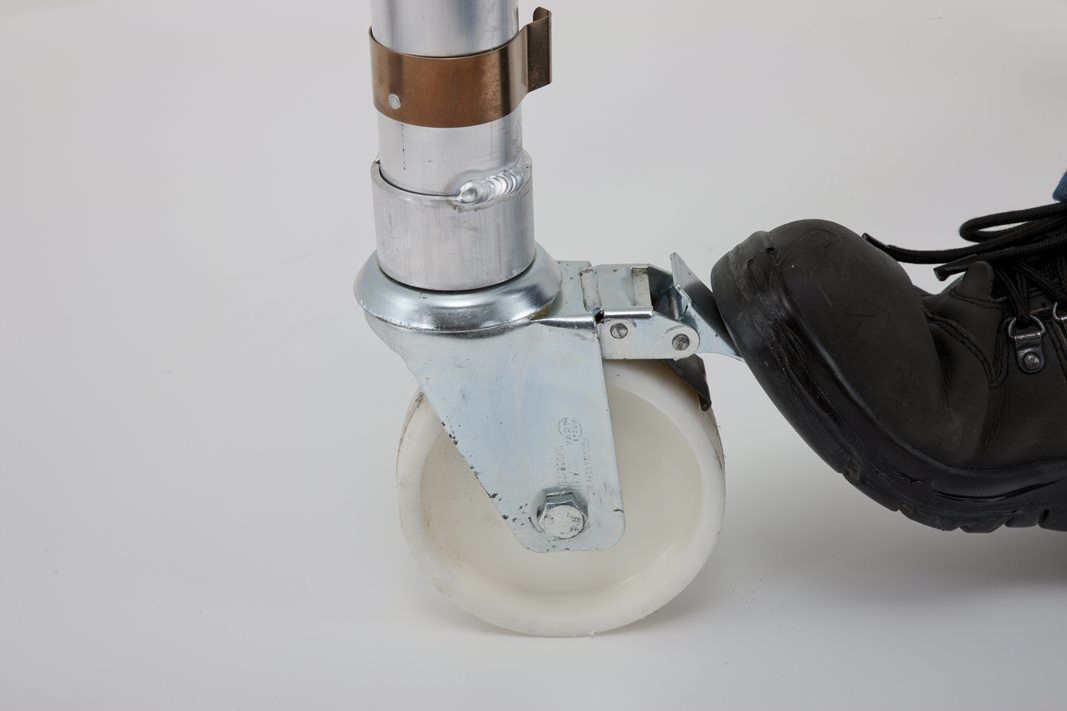

- Features 1x toeboard set and 4x locking castors
| Product Code | Working Height (m) | Platform Height (m) | Stabilisers? | Toeboards? | Weight(kg) |
| 5600101 | 2.6 | 0.6 | No | No | 27.2 |
| 5600102 | 2.9 | 0.9 | No | No | 36.0 |
| 5600103-IN | 3.7 | 1.7 | No | No | 45.9 |
| 5600103-OUT | 3.7 | 1.7 | Yes | No | 61.5 |
| 5600104 | 4.5 | 2.5 | Yes | Yes | 92.5 |
| 5600105 | 5.7 | 3.7 | Yes | Yes | 112.0 |
| 5600106 | 6.5 | 4.5 | Yes | Yes | 117.0 |
| 5600107 | 7.8 | 5.8 | Yes | Yes | 165.0 |
| 5600108 | 8.5 | 6.5 | Yes | Yes | 175.0 |
