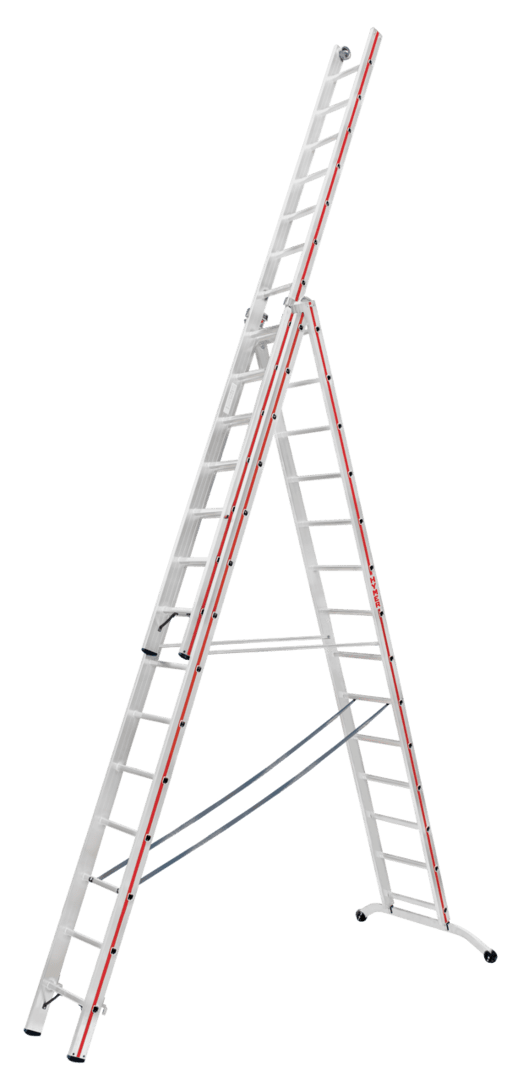

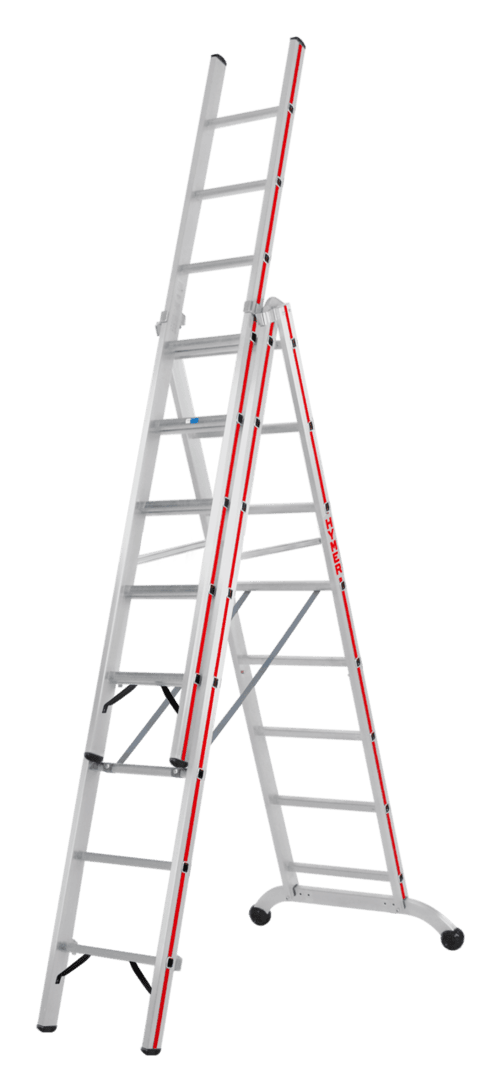

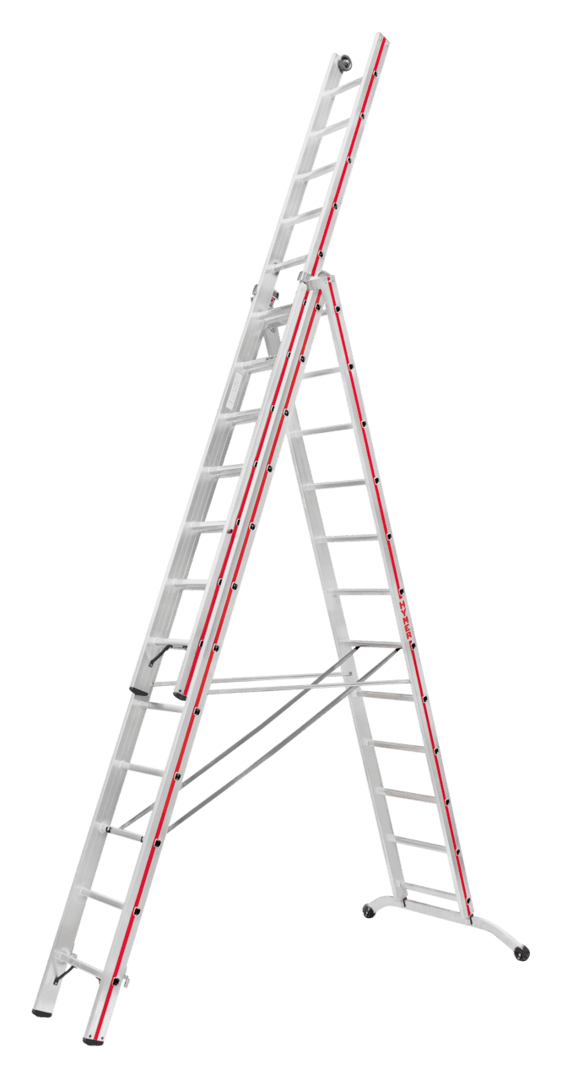

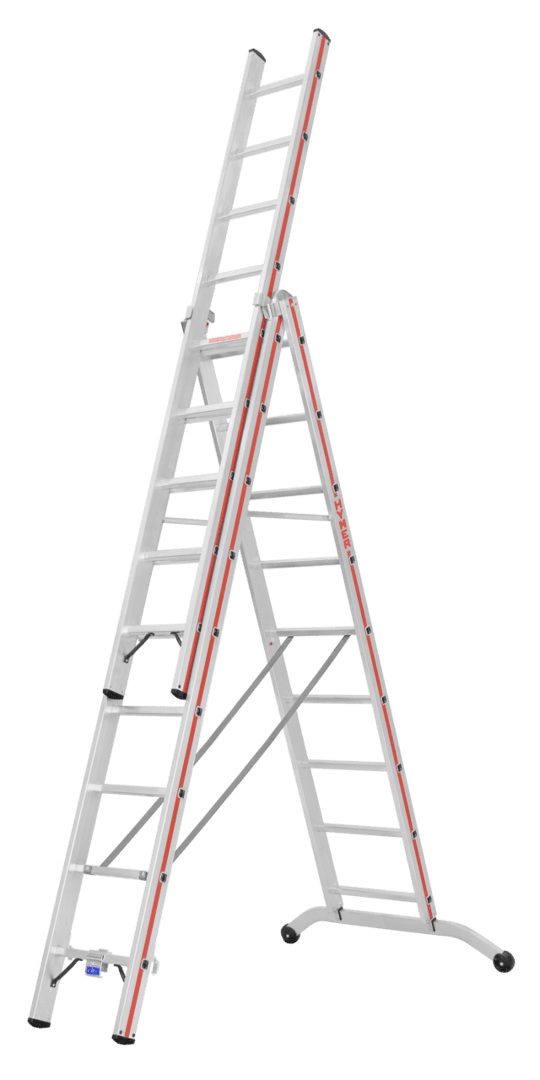

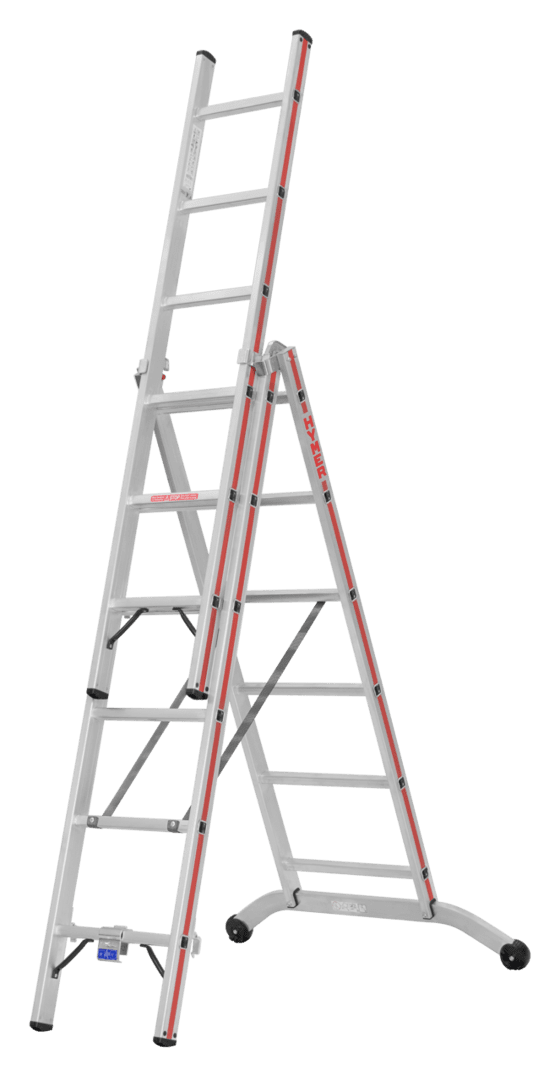

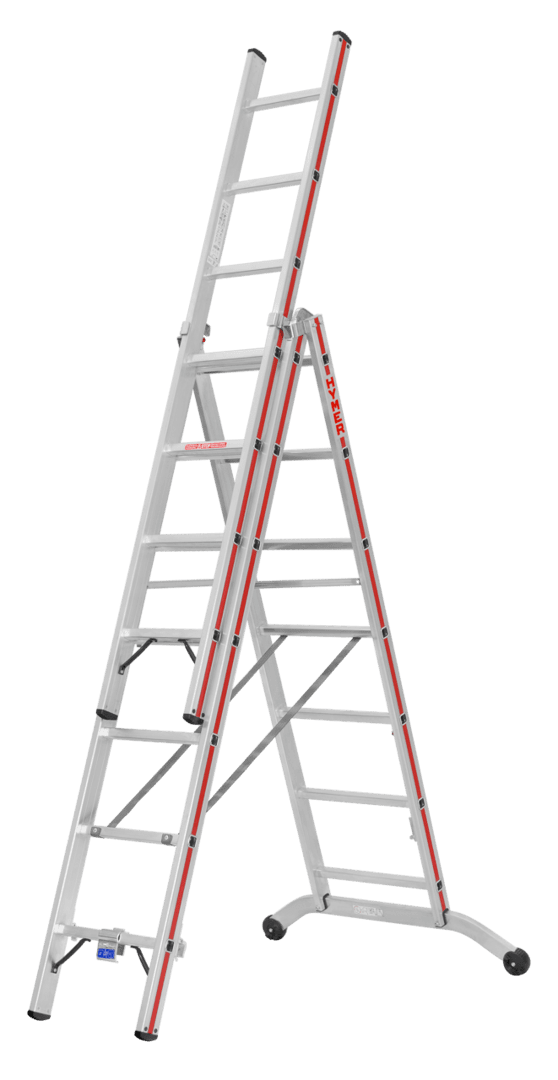

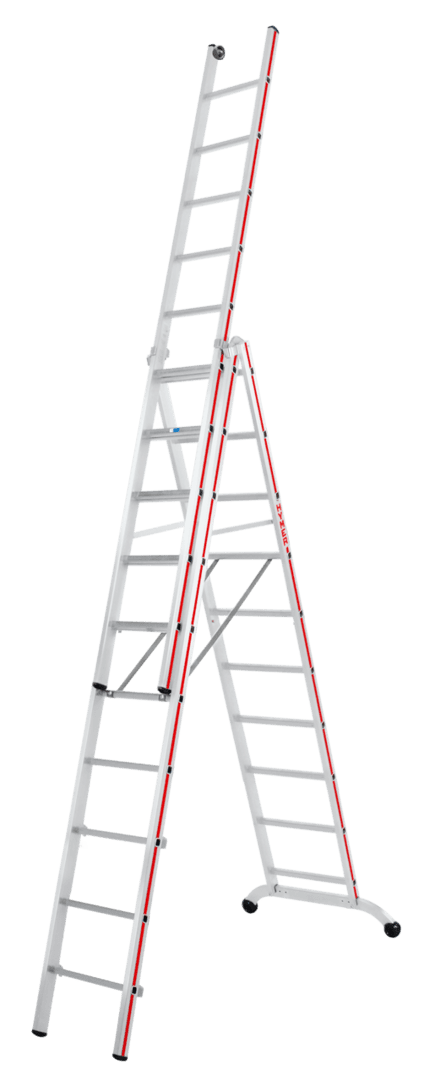

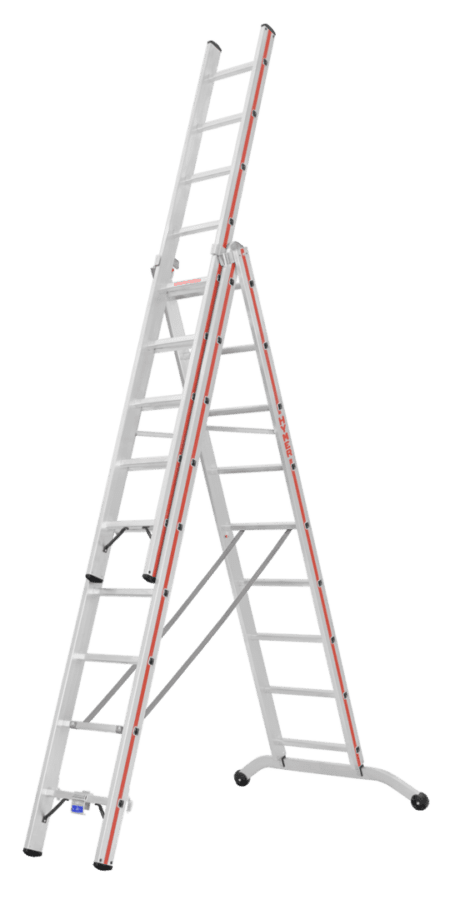

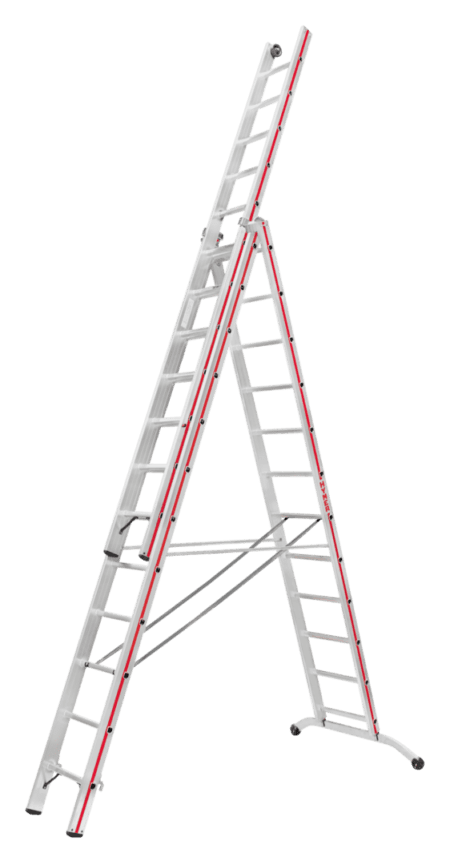

The Hymer Red Line Industrial 3 Section Combination Ladder series is the ultimate combination ladder. Can be used as a freestanding ladder, leaning ladder, extension ladder and stairway ladder (up to 3×9, 3×10 and above requires optional accessory).
The top and middle sections of the Hymer Red Line Combination Ladder have reinforcement braces beneath the bottom rungs. The 6047 comes equipped with 2 x rigid locking arms (3×7 upwards) and wall wheels from models 3×10 and up.
- The Hymer Red Line Industrial Combination Ladder has extra reinforced stiles for high stability and long service life.
- Comfortable, wide rungs with 30 mm rung depth.

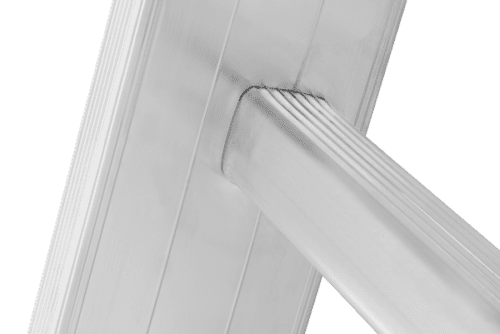

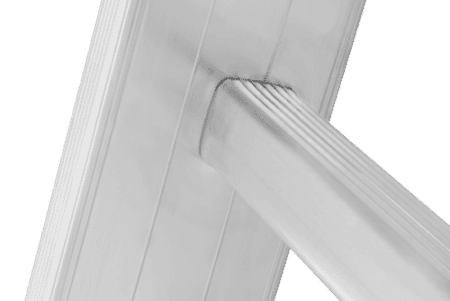

- Rungs made of high rib extruded profiles providing increased slip resistance.

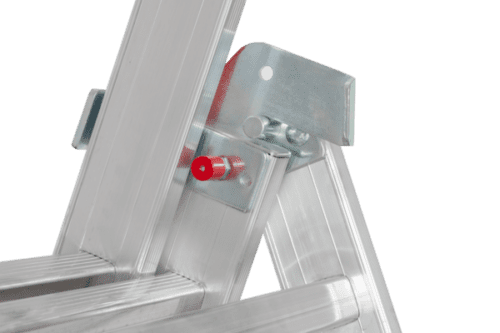

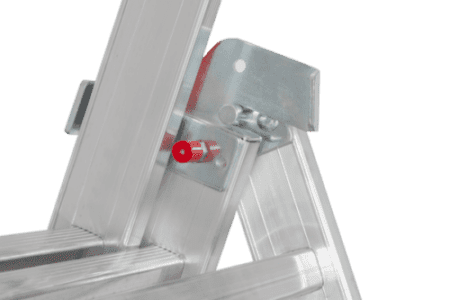

- Solid steel fittings.
- Safety strut provided by high-strength 30 mm wide Perlon straps.

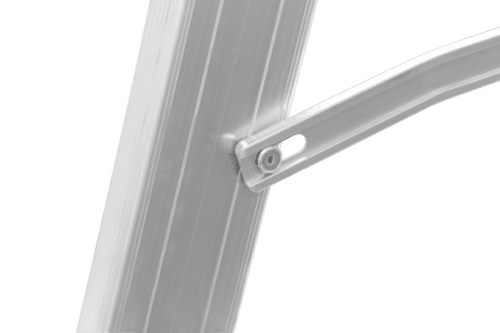

- Two rigid braces against unintentional folding (from size 3×7).

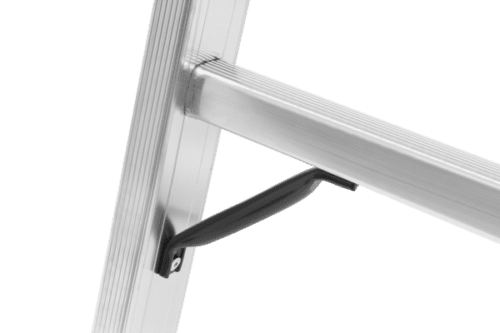

- Sturdy reinforcement braces on first step.

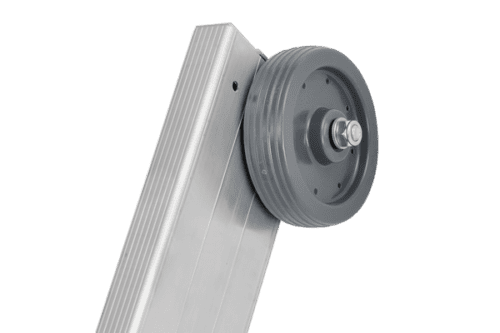

- With wall rollers to easily extend the ladder from size 3×10.
- Ladder feet screwed to the stile, easily replaceable.

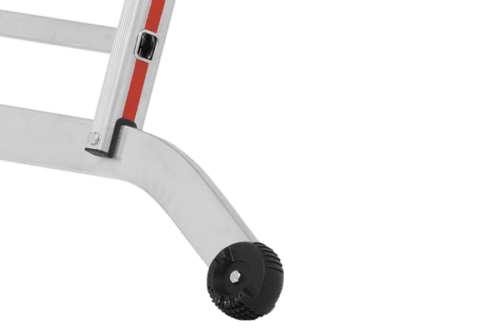

- Arched cross-beam with 125 mm ground clearance.
- Vertical Height (approx. M) 2.89-6.58 m
- Total Width (approx. mm) 1030-1285
|
Product Code |
No. Of Rungs |
Length (retratced/extended approx. M) |
Standing Height Max (approx. M) |
Reach Height Max (approx. M) |
Weight (approx. KG) |
|
604718 |
3 x 6 |
1.87/4.11 |
3 |
5 |
13 |
|
604721 |
3 x 7 |
2.15/4.95 |
3.8 |
5.8 |
14.6 |
|
604724 |
3 x 8 |
2.43/5.51 |
4.35 |
6.35 |
17.6 |
|
604727 |
3 x 9 |
2.71/6.63 |
5.45 |
7.45 |
20.6 |
|
604730 |
3 x 10 |
3.02/7.22 |
5.99 |
7.99 |
23.3 |
|
604736 |
3 x 12 |
3.63/8.66 |
7.34 |
9.34 |
30 |
|
604742 |
3 x 14 |
4.17/9.78 |
8.42 |
10.42 |
35.5 |
The video below shows the smallest size from this range of ladders. To see the other videos, please visit our YouTube channel here: https://www.youtube.com/user/SterkSystemsLtd/featured
For further info please contact us! We are always happy to help.
