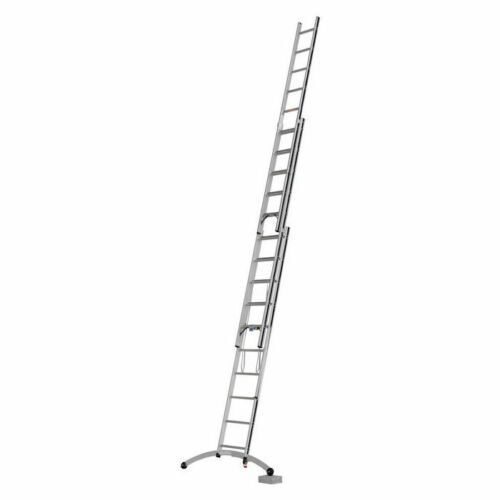

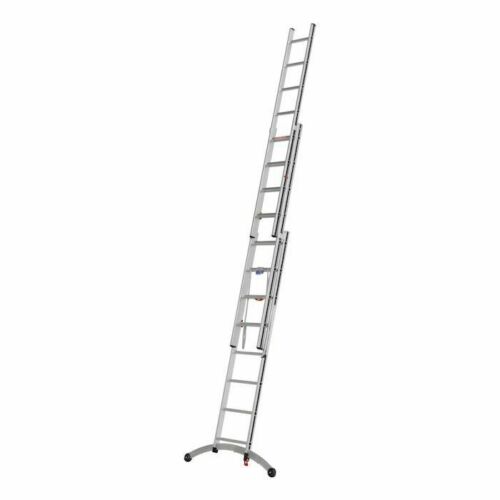

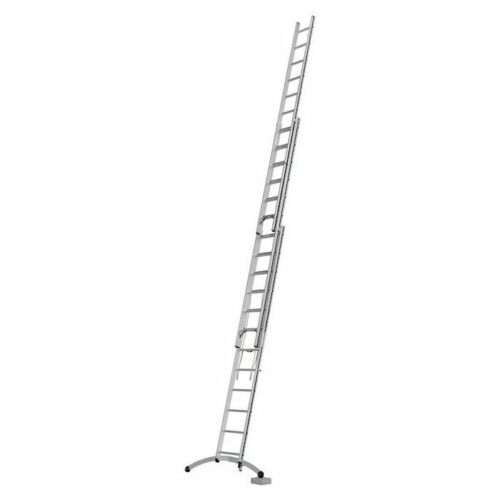

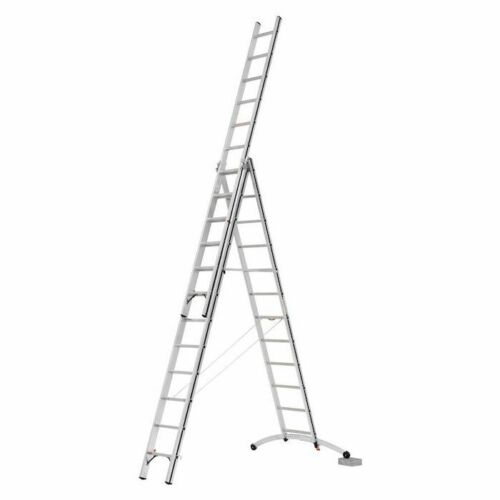

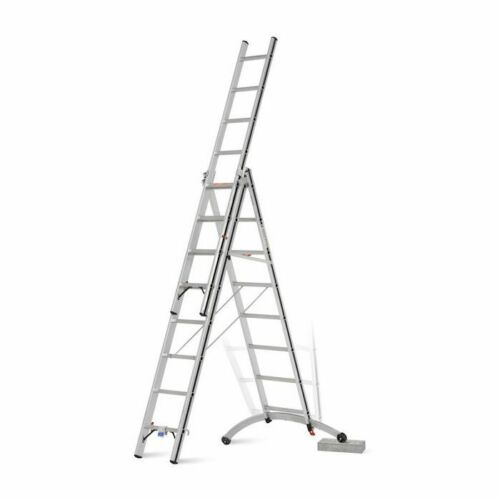

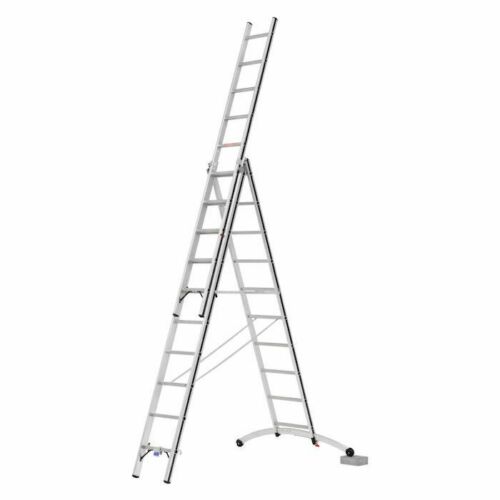

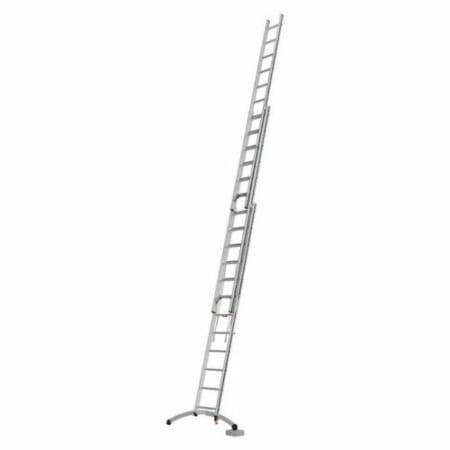

The Hymer 3 Section Smart-Base Combination Black Line Ladder 70247 series is a versatile three section combination ladder with many innovative safety features. These ladders can be used as a single, leaning and free standing ladder.
This Hymer 3 Section Black Line series offers a comfortable climbing experience with its wide body, deep rungs, high-strength restraining straps and Smart-Base for stabilising the ladder on uneven ground.
Specification:
- Versatile usage as leaning, extension and stepladder
- Durable stiles of high quality extruded profile
- Comfortable, wide rungs with 30 mm rung depth
- High-strength restraining straps
- Rigid safety bar against unintentional folding
- Stairway mode possible (except size 3×12)

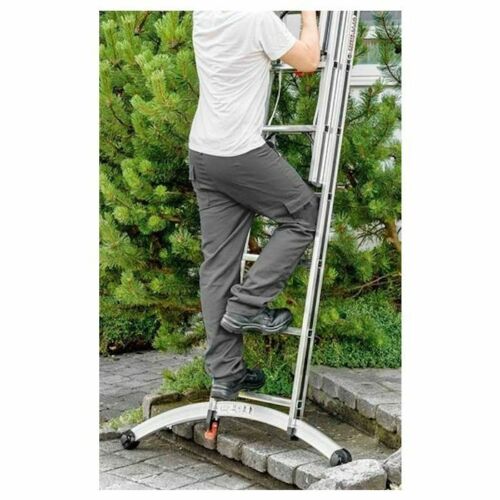

- Innovative Smart-Base® cross-beam:
- Compensates ground unevenness up to 120 mm
- Convenient operation via foot lever
- Integrated spirit level for precise alignment of the ladder
|
Product Code |
No. of Rungs |
Stile (top/middle/bottom) mm |
Standing height (extended/leaning ladder) M |
Reach Height (extended/leaning ladder) M |
Weight (KG) |
|
7024724 |
3 x 8 |
60/71/60 |
2.40/3.84 |
4.40/5.84 |
14.3 |
|
7024730 |
3 x 10 |
71/83/71 |
3.45/5.46 |
5.45/7.46 |
20.7 |
|
7024736 |
3 x 12 |
71/83/71 |
4.24/6.81 |
6.24/8.81 |
24.5 |
The video below shows the smallest size from this range of ladders. To see the other videos, please visit our YouTube channel here: https://www.youtube.com/user/SterkSystemsLtd/featured
For further info please contact us! We are always happy to help.
